Luna Lights: Smart LED displays

previous arrow
next arrow

Luna Light Jewel 101

$34.95

The Luna Light Jewel 101 is a smart puck light with 7 LEDs in the middle of a nearly 4″ diameter platform. Right out of the box, it supports over 30 premade effects.

Color

Getting Started

  1. Plug in your light using the supplied USB-C cable (USB power block not included).
  2. Press the button to the left of the USB-C plug to advance to the next effect. There are over 30 built-in effects to choose from.
  3. Add whatever you want displayed on top of the light, or buy some glowables.

If you want more control over your light, you can install the Luna Lights app and configure your light to connect to your local Wi-Fi network.

    Using the Luna Lights App

    1. Install the Luna Lights app from the App Store or Google Play (both coming soon).
    2. After plugging in your light, open the Luna Lights app. Make sure your mobile device has Bluetooth on, which the app uses to configure the Wi-Fi settings of your light.
    3. Wait until the app discovers your light and shows that it needs to be configured.
    4. Click on the discovered light.
    5. Follow the on-screen instructions to connect your light to your Wi-Fi network.
    6. Your Luna Light is now ready to use!

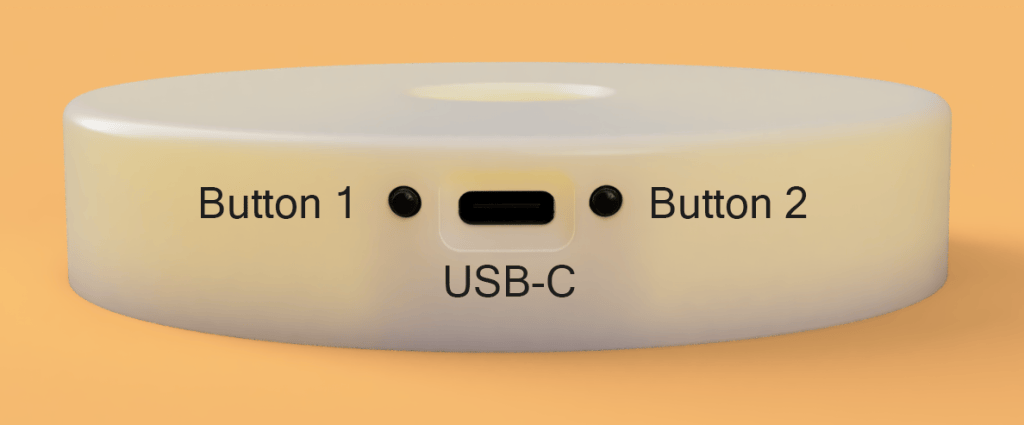

    Buttons Explained

    Button 1 (left of the USB plug)

    Pressing it moves to the next pre-installed effect.

    Button 2 (right of the USB plug)

    • Quick press (0.6 seconds or shorter) – Turn the lights on or off.
    • Hold for 0.7-5 seconds: Choose a new random color.
    • Hold for 5-10 seconds: Put the light back into Bluetooth discovery mode so the app can give it new Wi-Fi credentials.
    • Hold for more than 10 seconds: Restore to factory settings. Any changes you’ve made to presets, or any other WLED changes you’ve made, will be lost. Once 10 seconds is past, you need to release the button to complete the restore.

    Technical Specifications

    • Seven RGB LEDs on a custom PCB designed by Lunabytes
    • USB-C powered
    • ESP32-S3 microcontroller
    • 3D-printed cylindrical enclosure. Diameter: 101mm (3.98″), height: 20mm (0.79″)
    • Runs a custom version of WLED
    • Uses Bluetooth to communicate with the app so the light can be configured with Wi-Fi credentials
    • Uses Wi-Fi so through the app you can change the current effect, the brightness, or make more custom changes using the built-in WLED web interface
